Anthony Veder

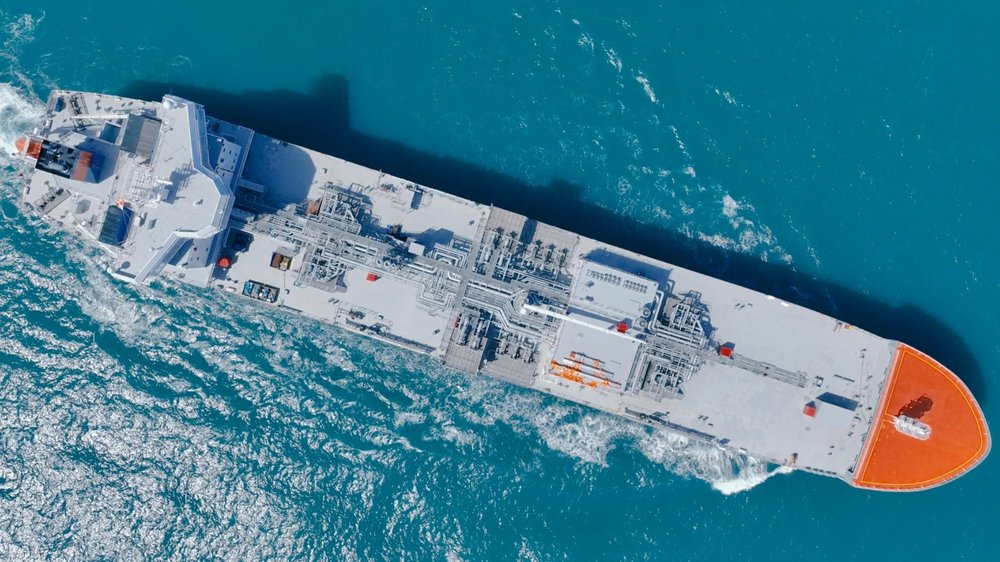

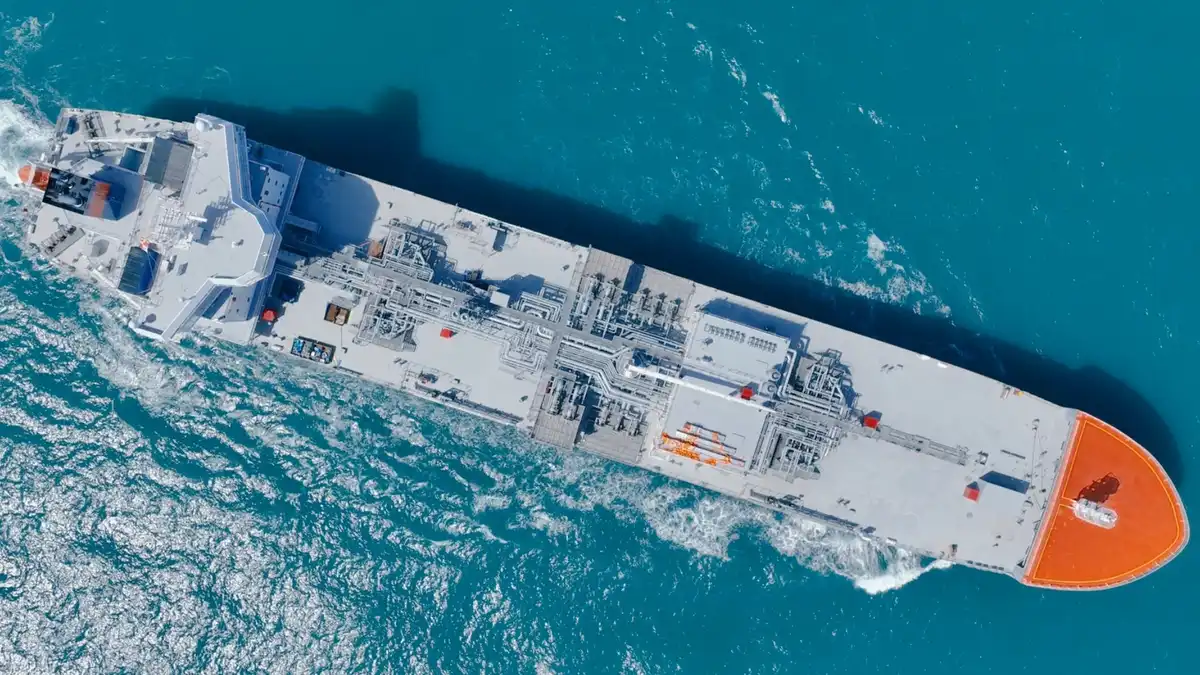

30,000 cbm LNG Carrier with an LNG Fuel Gas System
‘Coral Nordic’ for Anthony Veder, The Netherlands
General Information
| Project Data: | 3839 |
|---|---|
| Shipyard: | Jiangnan Shipyard (Group) Co.Ltd |
| Year of completion: | 2025 |
| Classification: | DNV-GL |
| TGE’s scope: | Complete gas handling and fuel supply system |
@ Anthony Veder
@ Anthony Veder
Characteristics of gas plant:
| Characteristics of gas plant: | |
|---|---|
| Capacity: | 30,000 m³ |

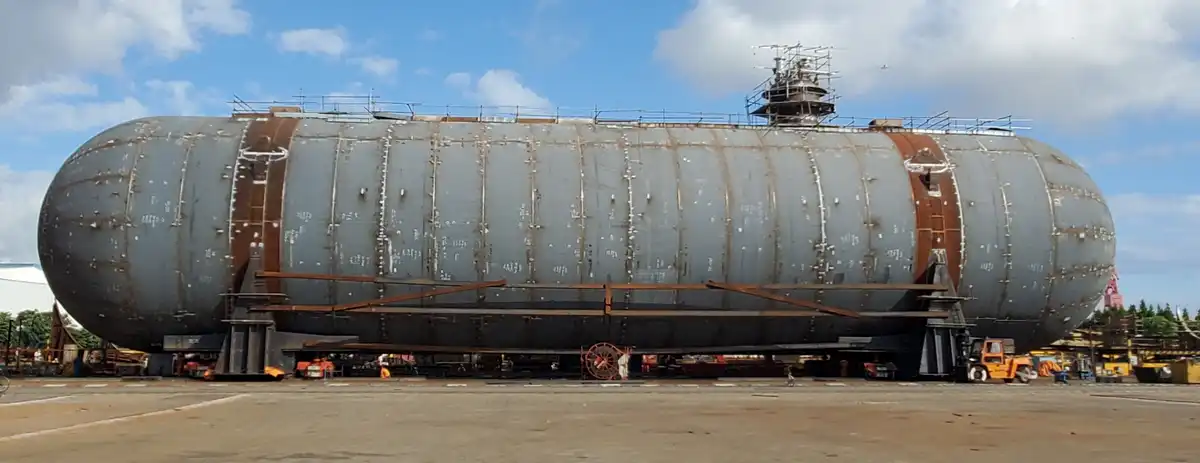

| Number of cargo tanks: | 2x bilobe |
| Material of cargo tanks: | 9% Ni steel |
| Cargoes: | LNG |
| Design temperature / pressure: | -164 C° |
| Design cargo density: | 546 kg/m³ |
| Number of segregations: | 1 |
| Elevated minifolds | 2 liquid lines, 2 x 12”, 300 lbs flanges 1 vapor lines, 1 x 12”, 300 lbs flanges |
| Loading- / Unloadingrate: | 3,000 m³/h |
| Deepwell pump | 2x 700 m³/h - 2x 800m³/h at 120 mLc |
| Booster pump | 2x 400 m³ at 120 mLc |
| BOG-handling & fuel gas system: | 2x cargo compressor with intercoolers 2x aftercoolers 2x submerged fuel gas pump 1x fuel gas buffer tank 1x fuel gas metering system |
| Cargo piping system: | Stainless steel, AISI 316L/316/316 |
| Inertgas plant: | |
| PSA type | Capacity: Membrane 100 Nm³ at 97 vol% N2 |
