40,000 cbm CHS & FGS LPG-/Ammonia-/VCM Carrier

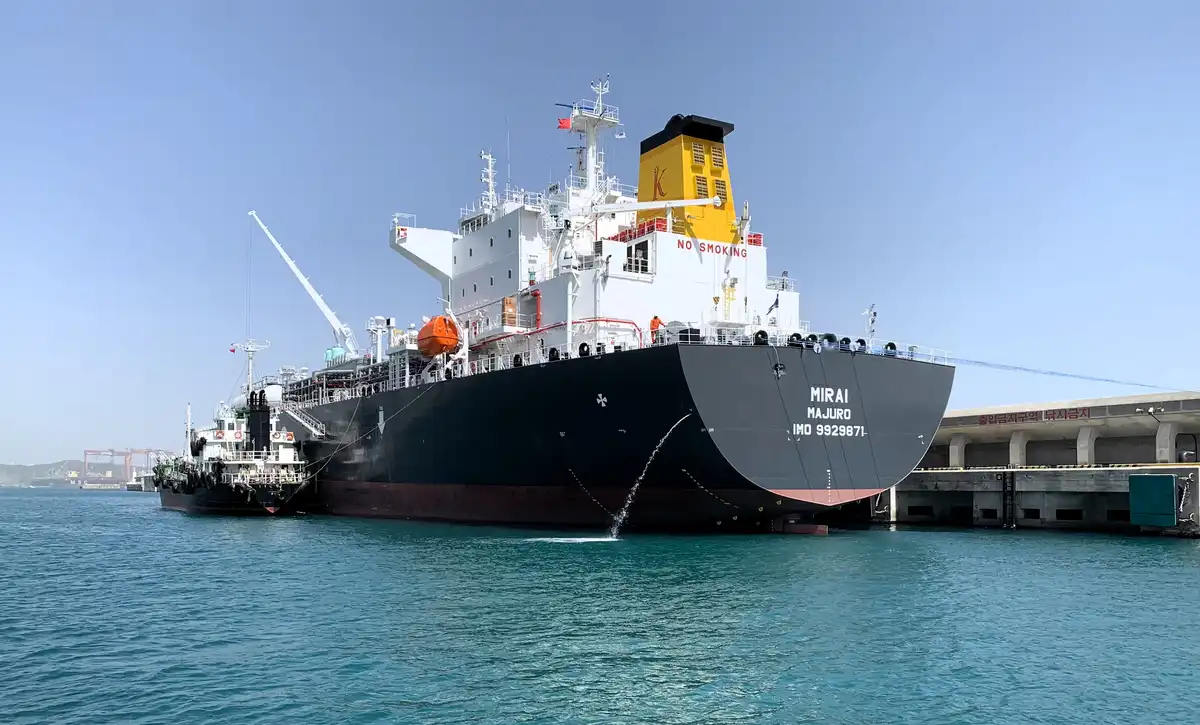

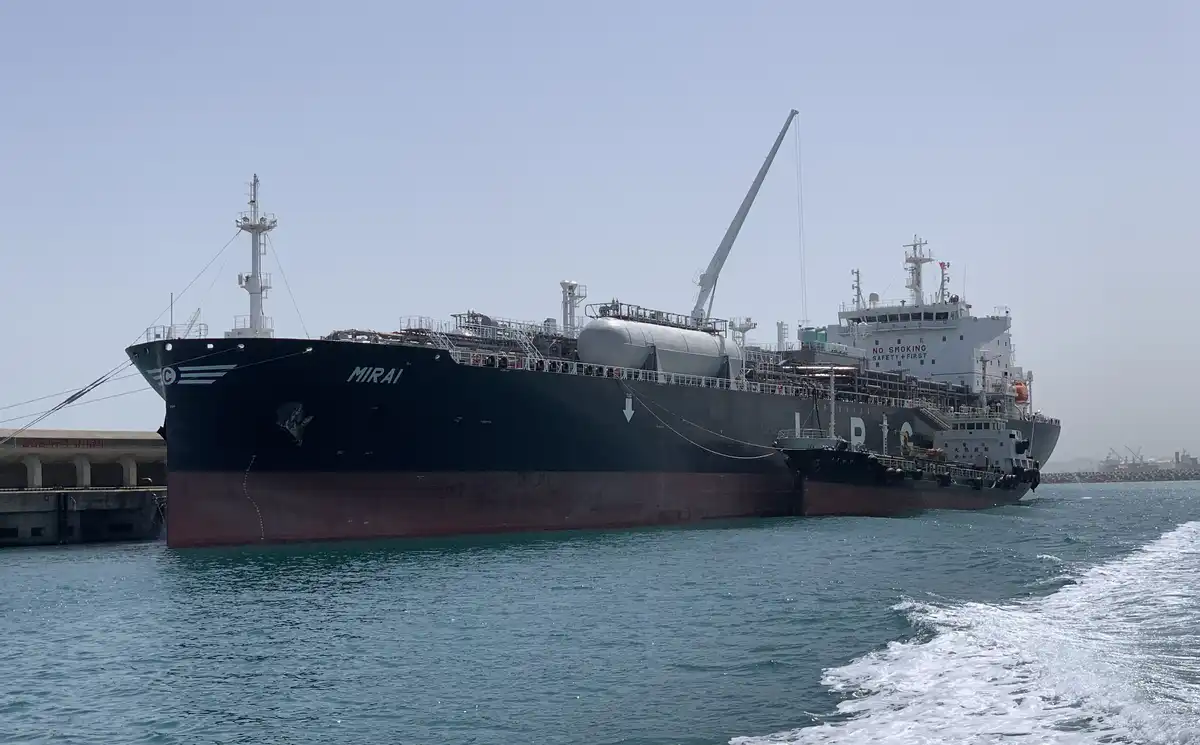

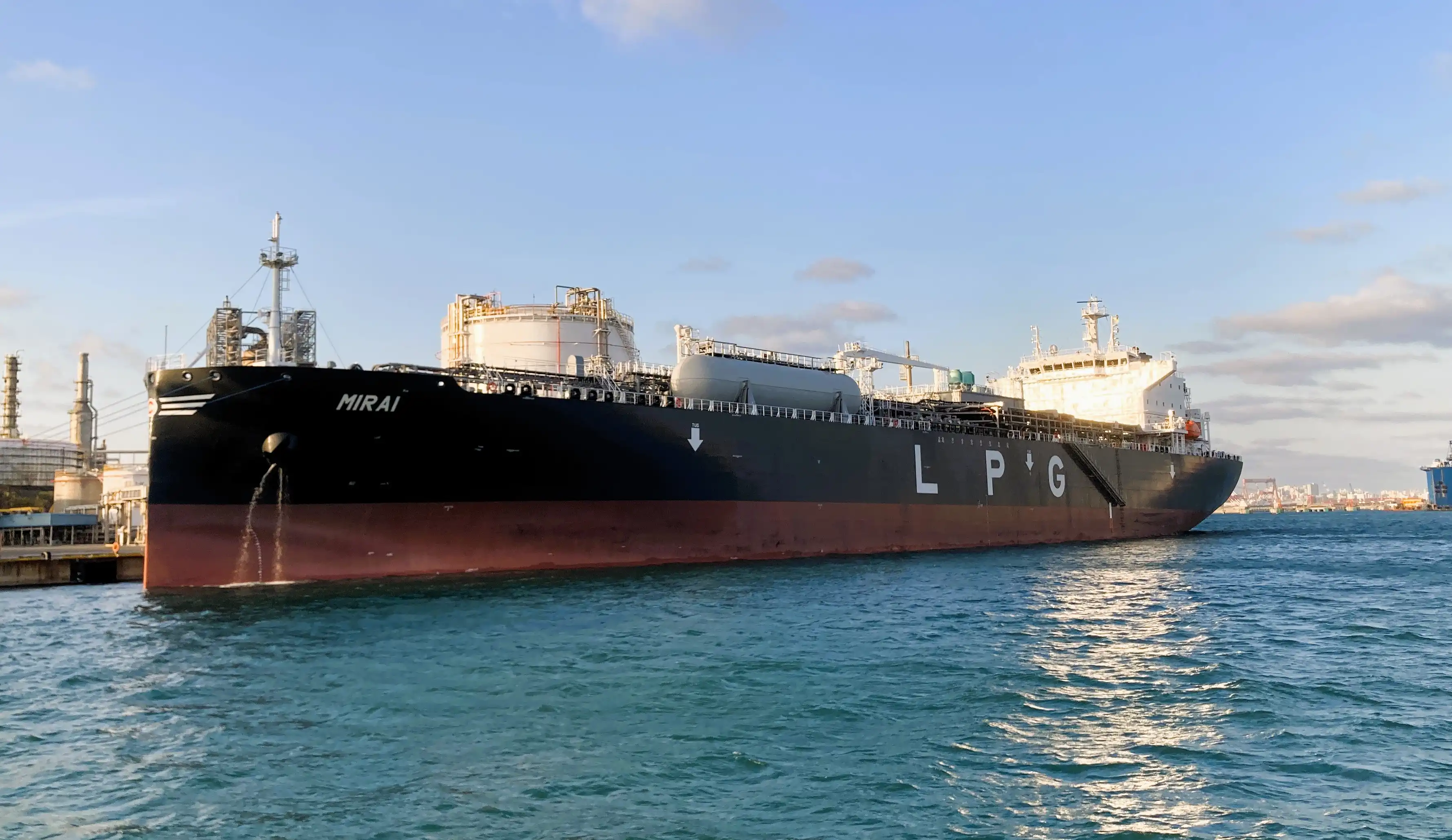

‘Mirai’ for KUMIAI, Japan
General Information
| Project Data: | 4047 |
|---|---|
| Shipyard: | Jiangnan Shipyard (Group) Co.Ltd |
| Year of completion: | 2023 |
| Classification: | ABS |
| TGE’s scope: | EPCS of cargo handling system and LPG Fuel gas system |
Characteristics of gas plant:
| Characteristics of gas plant: | |
|---|---|
| Capacity: | 40,000 m³ |
| Number of cargo tanks: | 3 (type A tanks) |
| Material of cargo tanks: | LTCS |
| Cargoes: | LPG, Ammonia, VCM |
| Design temperature / pressure: | -50°C / 0.45 bar g |
| Design cargo density: | 700 kg/m³ |
| Number of segregations: | 2 |
| Cargo manifolds: | 2 liquid lines, 2 x 12”, ANSI 300 lbs flanges 1 liquid branch, 1 x 12”, ANSI 300 lbs flanges 2 vapor lines, 2 x 8”, ANSI 150 lbs flanges 1 vapour branch, 1 x 8”, ANSI 150 lbs flanges |
| Loading- / Unloadingrate: | 2,400 m³/h |
| Deepwell pump | 6x 400 m³/h at 120 mLc |
| Booster pump | 2x 400 m³ at 120 mLc |
| Number of cargo heater / vaporizer: | |
| One (1) LPG heater/vaporiser | Capacity (heater): 1x 400 m³ Propane from -42 °C to 0°C at 15°C sea-water temp. Capacity (vapo.): 1x 2,400 Nm³/h N-Butane -5°C to 0°C at 15°C sea-water temp. |
| BOG-handling & fuel gas system: | 3x Cargo compressor LPG HP fuel supply skid |

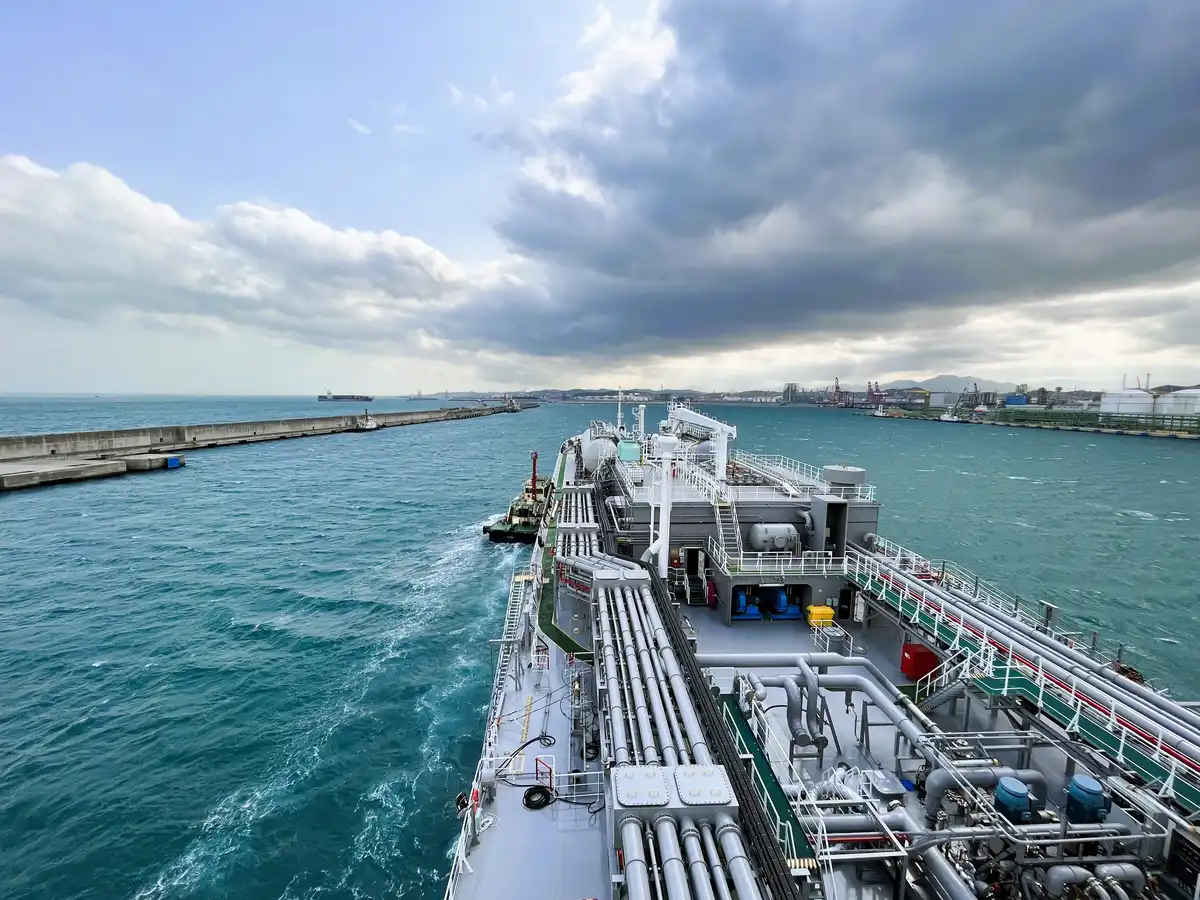

| Cargo piping system: | AISI 316/316L |
| Inertgas plant: | Capacity: 3,000 Nm³/h at 1.0 vol% O2 |
