Wideshine

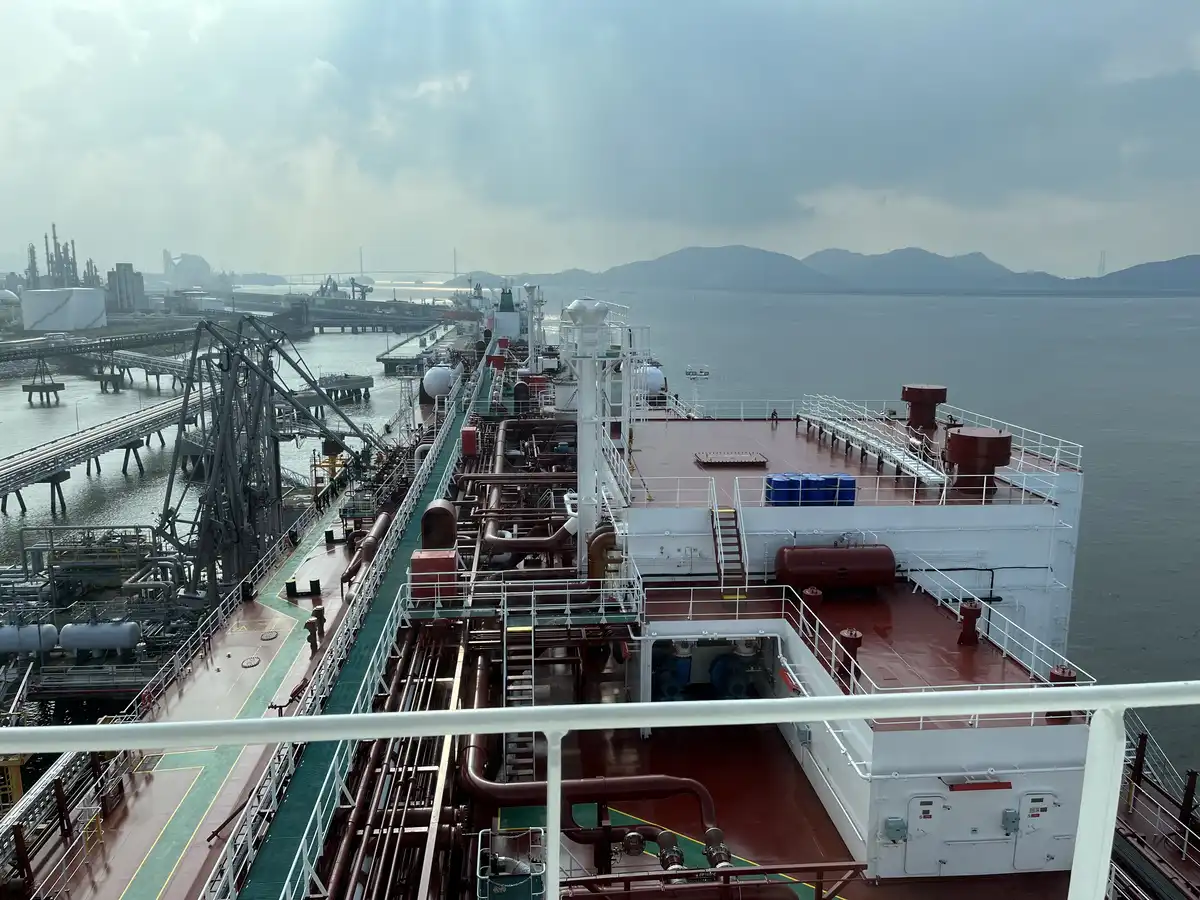

93,000 cbm LPG-Carrier with LPG-FGS
‘Gas Jupiter’ & ‘Gas Neptune’ for WIDESHINE, China
General Information
| Project Data: | 4072 A,B |
|---|---|
| Shipyard: | Jiangnan Shipyard (Group) Co. Ltd., China |
| Classification: | BV |
| Completion: | 2023 |
| TGE's Scope: | EPCS of cargo handling system and LPG Fuel gas system |
Characteristics of gas plant:
| Capacity: | 93,000 m³ |
|---|---|
| Number of cargo tanks: | 4 (type A tanks) |
| Cargoes: | LPG |
| Design temperature / pressure: | -52C° / 0.275/0.45 bar g |
| Design cargo density: | 600 kg/m³ |
| Number of segregations: | 1 |
| Cargo manifolds: | 2 liquid lines, 2x 16”, ANSI 300 lbs flanges 1 liquid branch, 1x 16”, ANSI 300 lbs flange 2 vapour lines, 2x 12”, ANSI 150 lbs flanges 1 vapor branch, 1x 12”, ANSI 150 lbs flanges |
| Loading- / Unloadingrate: | 5,200 m³/h |
| Number of cargo heater / vaporiser: | |
| Capacity (heater): | 1x 650 m³ Propane from -42 °C to 0°C at 15°C seawater temperature |
| Capacity (vapo): | 1x 5,200 Nm³/h N-Butane -5°C to 0°C at 15°C seawater temperature |
| BOG-handling & fuel gas system: | 3x Cargo compressor LPG HP fuel supply skid |
| Cargo piping system: | AISI 316L/316/316 |
| Inertgas plant: | |
| Combustion type: | Capacity: 5,000 Nm³/h at 3.0 vol% O2 |
| Nitrogenplant: | |
| Membrane system: | Capacity: 50 Nm³/h at 97,00 vol. % N2 |
