HYPROC SHIPPING COMPANY
13,000 cbm LPG Carrier
‘Hassi Berkinei’ & ‘Hassi Touareg’ for HYPROC SHIPPING COMPANY, Algeria
General Information
| Project Data: | 3222 A, B |
|---|---|
| Shipyard: | CSSC Jiangnan Shipyard, China |
| Year of Completion: | 2018-2019 |
| Classification: | BV |
| TGE's Scope: | EPCS-contract, cargo handling system, cargo tanks |

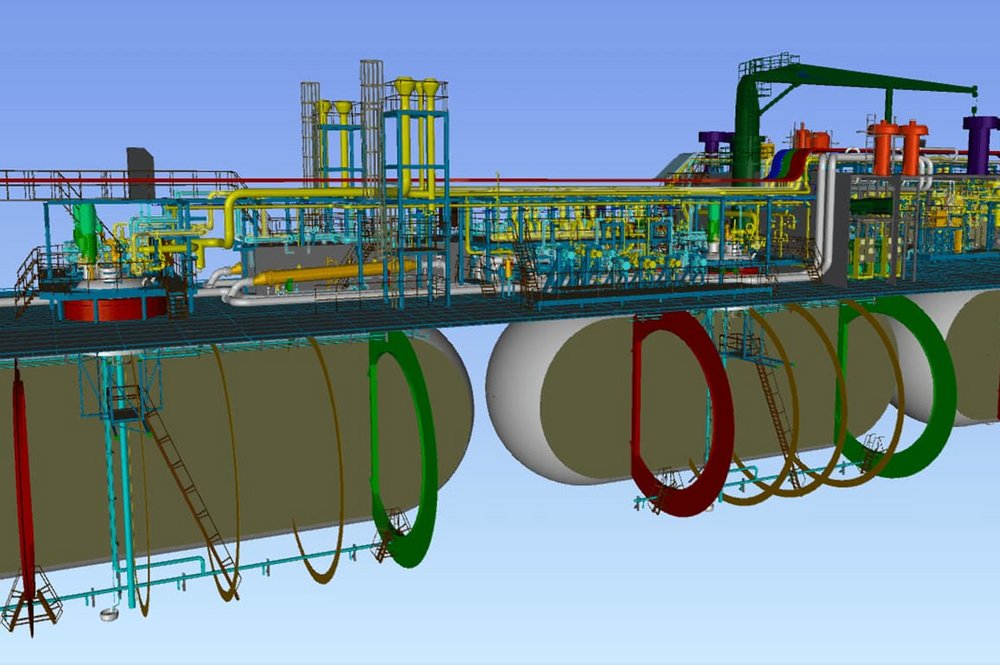

Characteristics of gas plant:
| Characteristics of gas plant: | |
|---|---|
| Capacity: | 13,000 m³ |
| Number of cargo tanks: | 3 (bilobe type) |
| Material of cargo tanks: | 13MnNi63 |
| Cargoes: | LPG |
| Design temperature / pressure: | -48°C / 3.1 bar g |
| Design cargo density: | 690 kg/m³ |
| Number of segregations: | 1 |

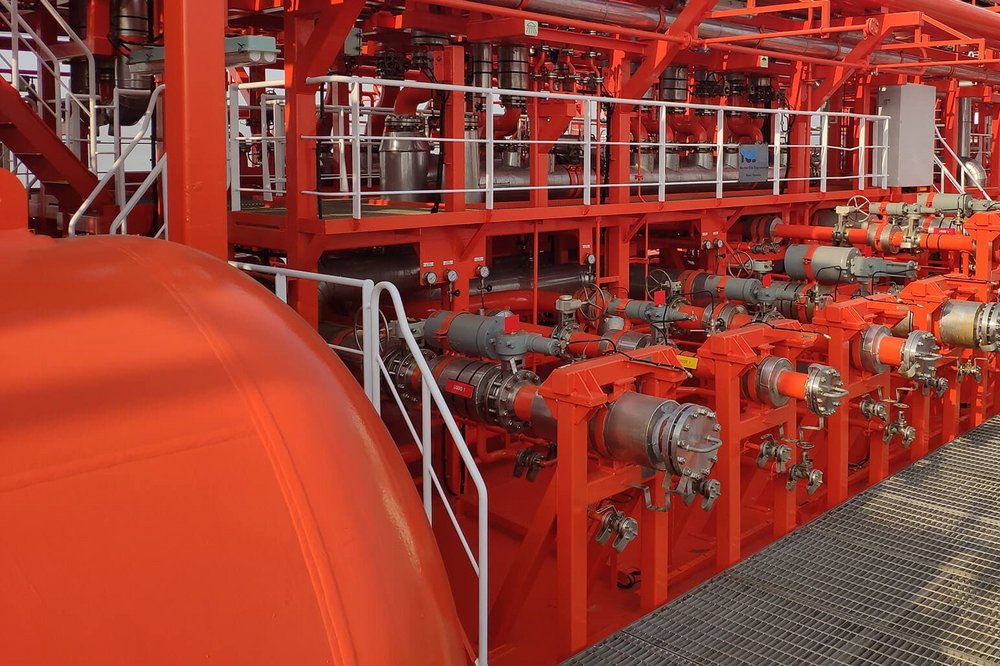

| Cargo manifolds: | 2 liquid lines, 1 x 10”, 1 x 8”, ANSI 300 lbs flanges 2 vapour lines, 1 x 8”, 1 x 6”, ANSI 150 lbs flanges |
| Loading- / Unloadingrate: | 2,100 m³/h |
| Deepwell pump | 2 x 250 m³/h at 120 mLC |
| Booster pump | 2 x 350 m³/h at 120 mLC |
| One (1) ethylene vaporiser | Capacity: 2,100 m³/h Ethylene from -104°C at 15°C sea-water |
| Reliquefaction system: | 3 x cargo compressors |
| Cargo piping system: | AISI 316 / 316L |
| Inertgas plant: | |
| PSA system | Capacity: 1,200 Nm³/h at 99.5 vol. % N2 |
