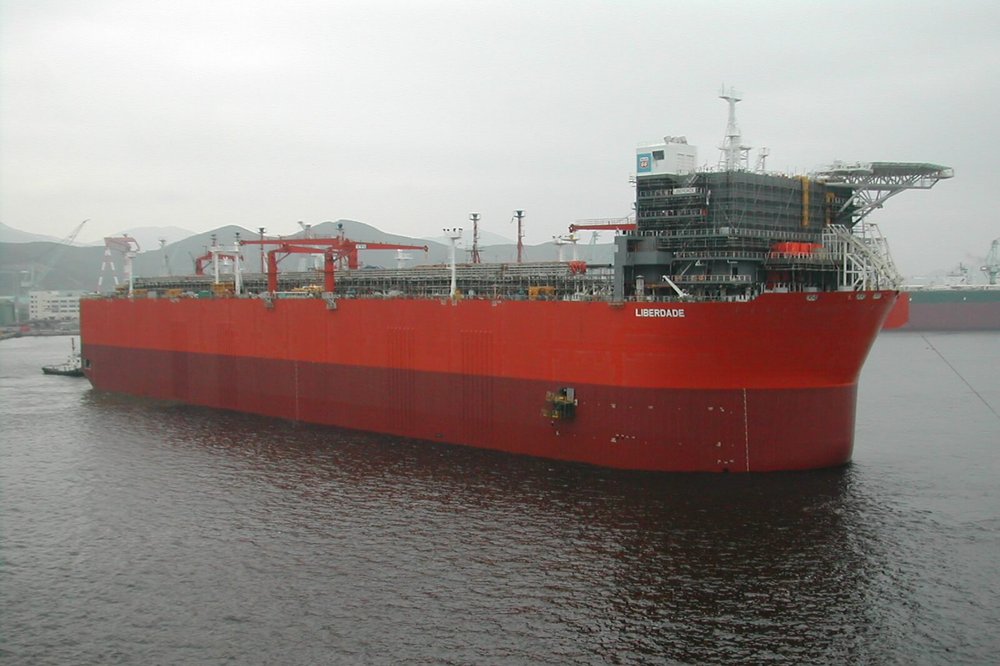

Liberdade
95,000 cbm LPG-FSO
for PHILLIPS PETROLEUM COMPANY (Bayu-Undan), USA
General Information
| Project Data: | 1158 |
|---|---|
| Owner: | PHILLIPS PETROLEUM COMPANY (Bayu-Undan), USA |
| Shipyard: | Samsung Heavy Industries, Korea |
| Year of Completion: | 2003 |
| Classification: | LRS |
| TGE's Scope: | EPCS-contract and complete gas handling system |
Vessel:
| 95,000 cbm LPG-FSO | |
|---|---|
| Length o.a. | 246.0 m |
| Beam: | 54.0 m |
| Draught (LPG): | 17.0 m |
Characteristics of gas plant:
| Characteristics of gas plant: | |
|---|---|
| Number of cargo tanks: | 6 |
| Material of cargo tanks: | Low temperature carbon-manganese steel |
| Cargoes: | LPG (C-Propane, C-Butane) |
| Design temperature / pressure: | -50°C / 0.25 bar g acc. to IMO |
| Maximum cargo density: | 610 kg/m³ |
| Number of segregations: | 2 |
| Cargo manifolds: | 2 liquid lines, 2 x 12” ANSI 300 lbs flanges 2 vapour lines, 2 x 12” ANSI 300 lbs flanges |
| Loadingrate: | 1,940 mt/day propane + 1,830 mt/day butane |
| Deepwell pump | 8 x 500 m³/h at 130 m LC |
| Booster pump | 4 x 250 m³/h at 130 m LC |
| Number of vaporiser: | |
| Direct sea-water heated | Capacity: 2 x 3,500 Nm³/h Propane each |
| Reliquefaction system: | direct cycle 4 x oil-free cargo compressor, type SULZER Refrigerant capacity: abt. 260 kW each |
| Refriegeration system: | 4 chiller units (one as a spare) Refr. capacity unit A: abt. 3.300 kW / Refrigerant: Propane |
| Cargo piping system: | Stainless steel, AISI 316L |
| Inertgas plant: | |
| Combustion generator | Capacity: 6,000 Nm³/h at max 1.0 % O2 |
| Nitrogen plan: | |
| Nitrogen membrane generator | Capacity: 2 x 100 Nm³/h at 97.0 % purity |
